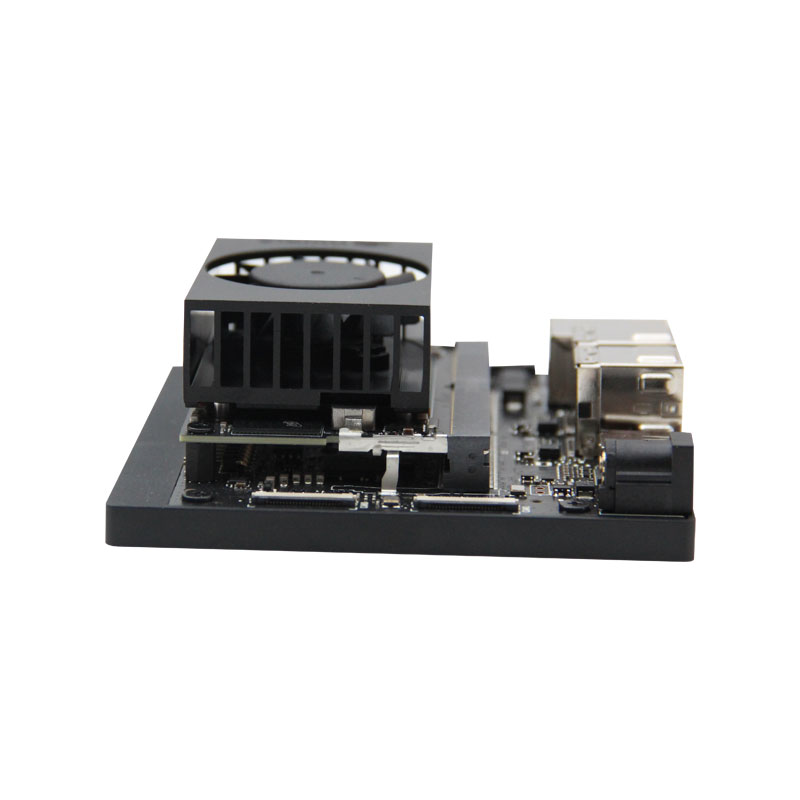

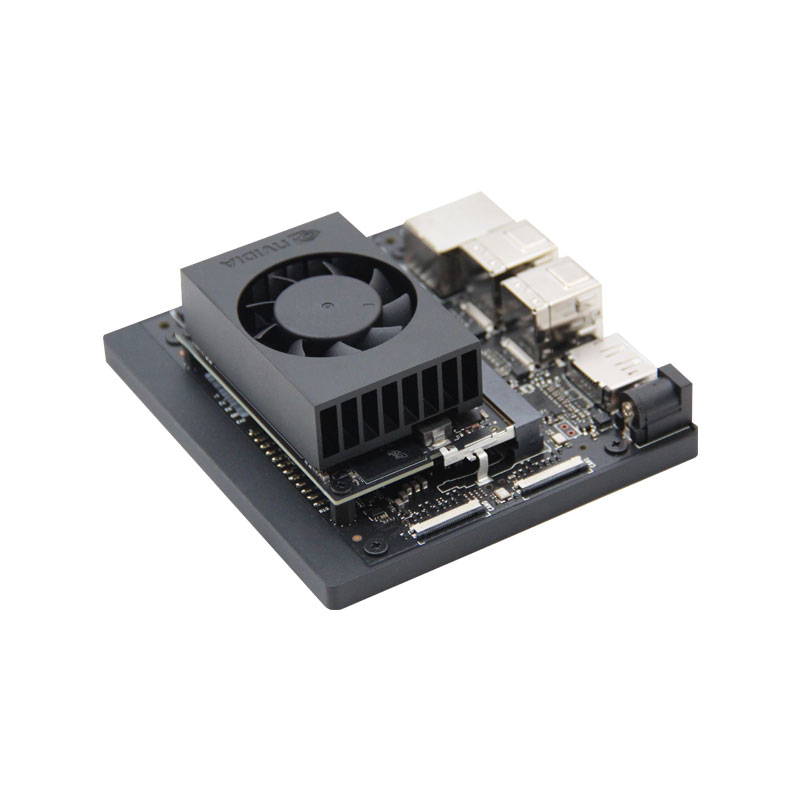

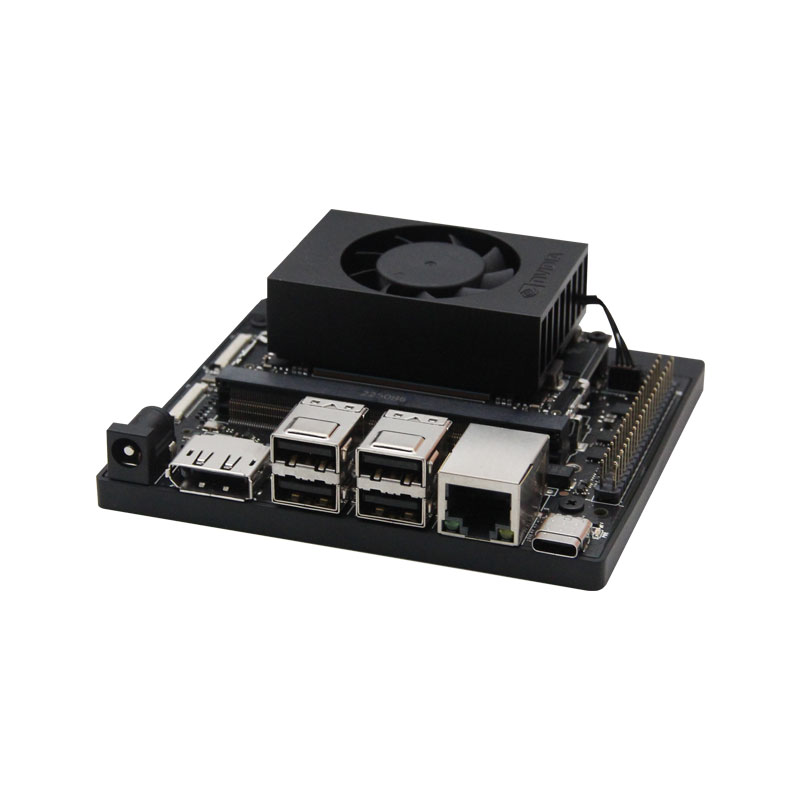

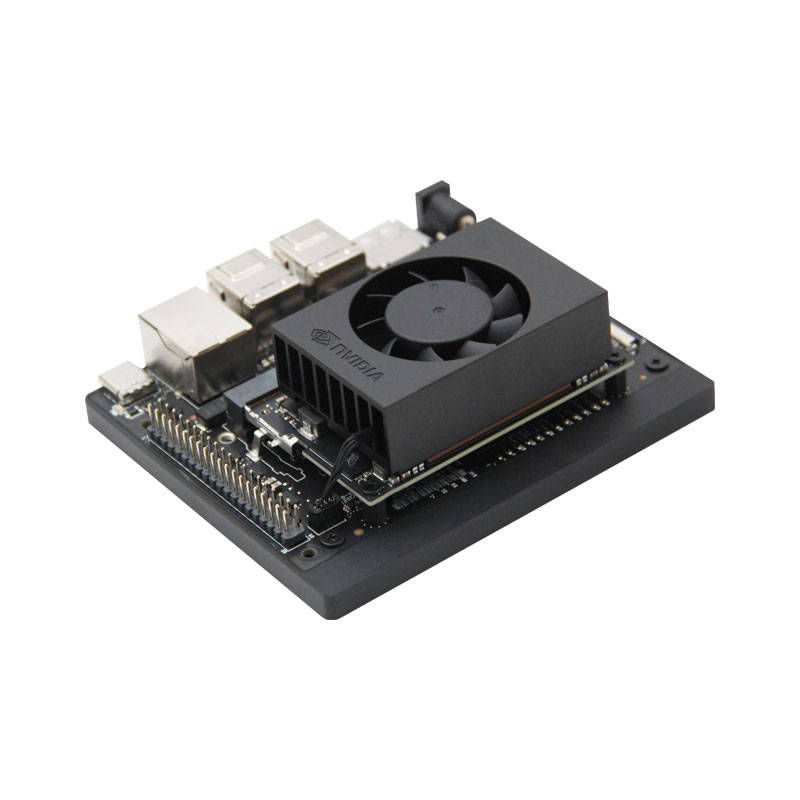

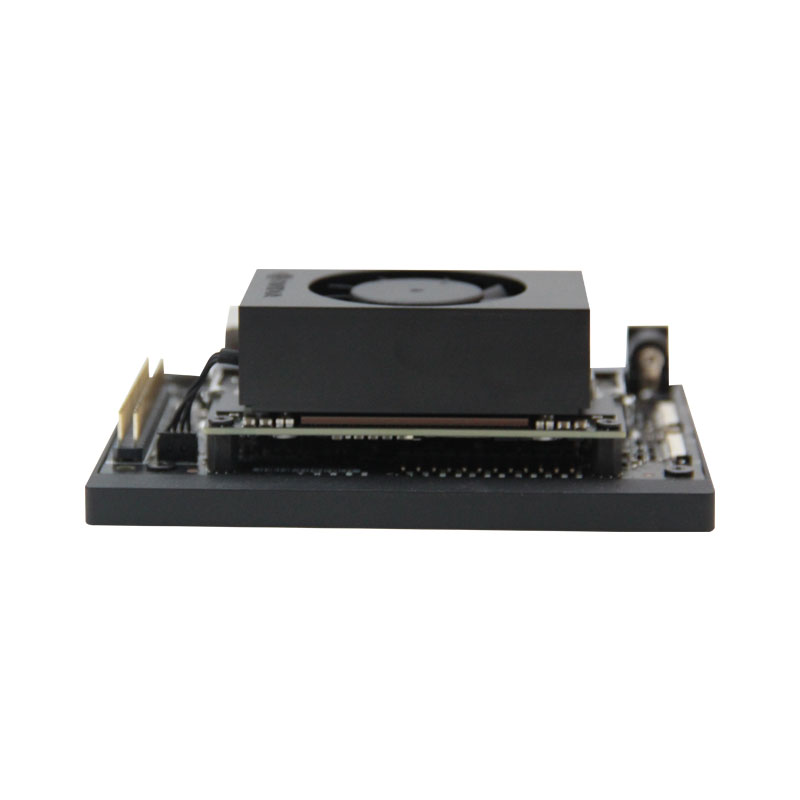

Jetson Orin Nano Super Developer Kit
Jetson Orin Nano 8GB Module
|
AI Performance
|
67 TOPS
|
|
GPU
|
NVIDIA Ampere architecture with 1024 CUDA cores and 32 tensor cores |
|
CPU
|
6-core Arm® Cortex®-A78AE v8.2 64-bit CPU 1.5MB L2 + 4MB L3 |
|
Memory
|
8GB 128-bit LPDDR5
102GB/s
|
|
Storage
|
Supports SD card slot and external NVMe |
|
Video Encode
|
1080p30 supported by 1-2 CPU cores |
|
Video Decode
|
1x 4K60 (H.265)
2x 4K30 (H.265)
5x 1080p60 (H.265)
11x 1080p30 (H.265)
|
|
Networking
|
1xGbE connector |
|
Camera
|
2x MIPI CSI-2 22-pin camera connectors |
|
Display
|
1x DP 1.2 (+MST) connector |
|
USB
|
USB Type-A connector: 4x USB 3.2 Gen2
USB Type-C connector for UFP |
|
Other I/O
|
40-pin expansion header (UART, SPI, I2S, I2C, GPIO)
12-pin button header
4-pin fan header
DC power jack
|
|
Power
|
7W - 25W
|
|
Mechanical
|
103mm x 90.5mm x 34.77mm
(Height includes feet, carrier board, module, and thermal solution)
|
